K&M 19 Inch Wall Mounted Cabinet Swivel Type

Designed exclusively for housing active and passive network infrastructure, this swivel‑type wall cabinet offers a compact, service‑friendly enclosure for telecom, data, and broadband installations. Its integrated 180° horizontal swivel mechanism allows the entire cabinet to swing away from the wall, providing full rear access for cable termination, patching, and equipment maintenance without dismounting the unit—ideal for space‑constrained server rooms, telecom closets, and outdoor roadside cabinets.

Inquiry now

Key Features

Standard Rack Compatibility: Accommodates 19‑inch EIA‑310 equipment with adjustable front and rear mounting rails (depth configurable up to 600 mm). Supports up to 15U of active switches, routers, firewalls, fiber optic terminals, and power distribution units.

Swivel Mechanism: Heavy‑duty precision bearings enable smooth rotation with a positive locking system at 0°, 90°, and 180° positions, ensuring stable operation during and after rotation.

Cable Management: Equipped with multiple top/bottom cable entry ports with brush strips, plus horizontal and vertical lacing bars to organize and secure copper/fiber cabling, reducing bend radius violations and signal loss.

Thermal Management: Vented side panels and a removable rear door with high‑density perforations support passive airflow; optional fan kit (not included) can be mounted for active cooling of high‑heat‑dissipation devices.

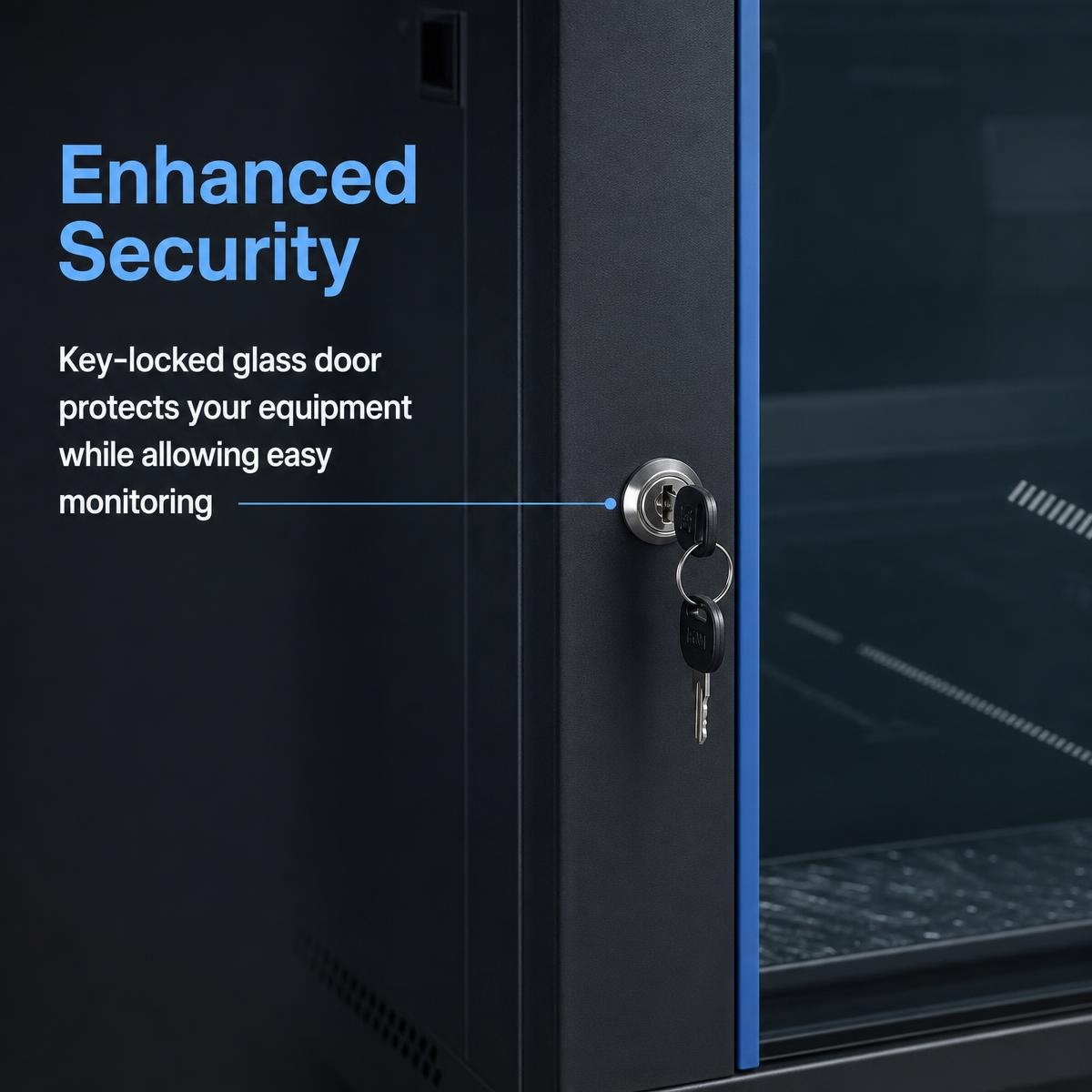

Security & Durability: Constructed from 1.5 mm cold‑rolled steel with a powder‑coated, corrosion‑resistant finish. Fitted with a tempered‑glass front door and a keyed 3‑point locking handle to prevent unauthorized access. Grounding studs and bonding points ensure ESD protection and compliance with telecom grounding standards.

Load Capacity: Rated for a static load of up to 80 kg (176 lbs) when properly wall‑anchored to concrete or brick substrates.

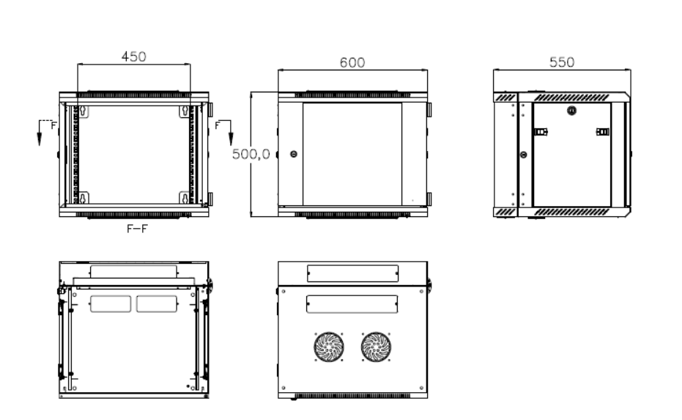

HEIGHT

DEPTH

WIDTH

WEIGHT

PART NO

450

600

20.5KG

KDM4506

550

600

24KG

KDM4509

12U

450

600

27.5KG

KDM4512

15U

450

600

31KG

KDM4515

600

28.5KG

KDM6609

12U

600

32.5KG

KDM6612

15U

600

36KG

KDM6615

18U

600

42KG

KDM6618

Packaging Information

Size: 9U

Dimension:600mm (Width) x550mm (Depth)

Material: Made of SPCC

Tempered glass front door with locking. (1.2mm)

Metal rear door with locking. (1.2mm)

Removable side panels with plastic latches and lock. (1.2mm)

Frame (1.2mm)

Two fans .(220V)

6 Way standard PDU Optional

L rail one pair/ Fixed Shelf (Optional)

Screws&nuts 10 Pcs

Color: Black (RAL9004) or Light grey (RAL7035)

Load Capacity: 60KGS

Frequently Asked Questions

Q What is the main advantage of the 19 Inch Wall Mounted Cabinet Swivel Type?

A: The key advantage is its integrated 180° horizontal swivel mechanism. This design allows the entire 19 inch wall mounted cabinet to swing away from the wall, providing technicians with full rear access for cable termination, patching, and equipment maintenance without dismounting the unit. It is the perfect space-saving solution for telecom closets and tight server rooms.

Q What equipment is compatible with this wall mounted cabinet, and what is its load capacity?

A: This swivel type wall mounted cabinet is fully compatible with standard 19-inch EIA-310 equipment. It is available in multiple sizes (6U, 9U, 12U, and 15U) with adjustable mounting rails. When properly anchored to a concrete or brick wall, the cabinet can safely support a static load capacity of up to 80 kg (176 lbs), making it ideal for heavy switches, routers, and power distribution units.

Q Can the 19 Inch Swivel Wall Cabinet be used for outdoor installations?

A: The standard model is specifically engineered for indoor environments with an IP20 rating. However, customized weatherproof variants of the 19 inch wall mounted cabinet (up to IP55 protection) are available upon request. These outdoor versions can be equipped with optional sunshields and heater kits, making them highly suitable for outdoor broadband installations, FTTH distribution, and industrial IoT gateways.
