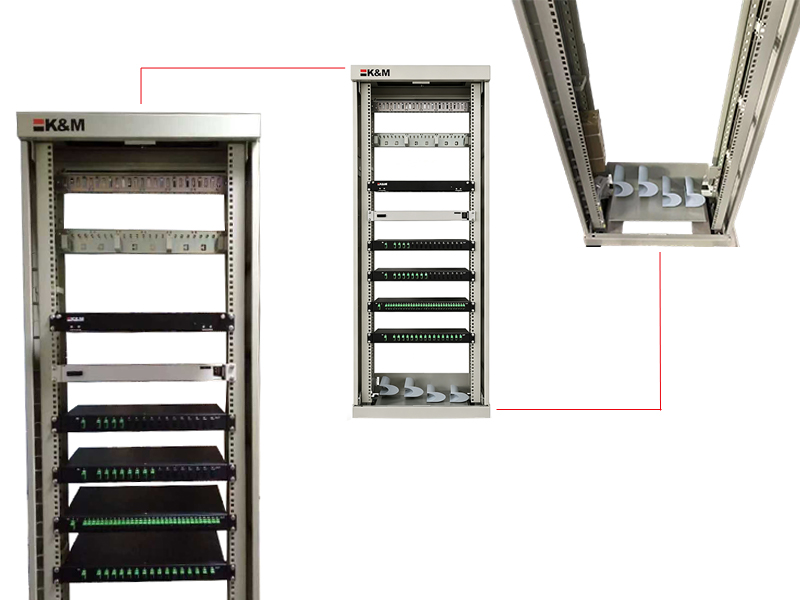

K&M_19 inch etsi open rack (2000x600x600)

Name: K&M_19 inch etsi open rack (2000x600x600)
Availability: InStock

GPX218-RA3 optical distribution cabinet is designed according to YD/T 778, providing such functions as lead-in, fixing and striping for optical cables, splicing, and protection, connecting/cross-connecting for optical fiber, storage, park and management for pigtail and so on. Meanwhile, It also can install optical splitter, wave division multiplex device. It is widely used for fiber telecommunication network, especially for the office center and cross connection point on the optical access network.

Inquiry now

Key Features

■ Compliance with ETSI rack-mount 21 inch and compatible with 19 inch.
■ Cable Clamp Rails Height-adjustable for cable sheath & strength member clamping, with cable routing at the sides of the rack.
■ 21’ installation rail front and rear adjustable range for 150mm.
■ The base thickness 2.0mm, post rail thickness 1.5mm.
■ Maximum loading capacity 200Kg.
■ Surface finish to be painting color RAL7032.
■ The rack is disassemble one but shipped we propose in fully constructed.
■ Whole front operation as lead-in, striping and dispatching for optical cables.
■ Management of patch cord can choose fiber storage box or frame according to actual needs.
■ Modular design, convenience for install.
■ Structure of the frame is open type.
■ Protective connector for striping ribbon fiber make sure the protection of bare fiber, the fixation and grounding of optical cable more completely.
■ Can install optical splitter module and attenuator and some value-added module.
■ The cable can be lead in top or bottom as required.
■ Top side has dustproof device, Bottom side has removable plate.

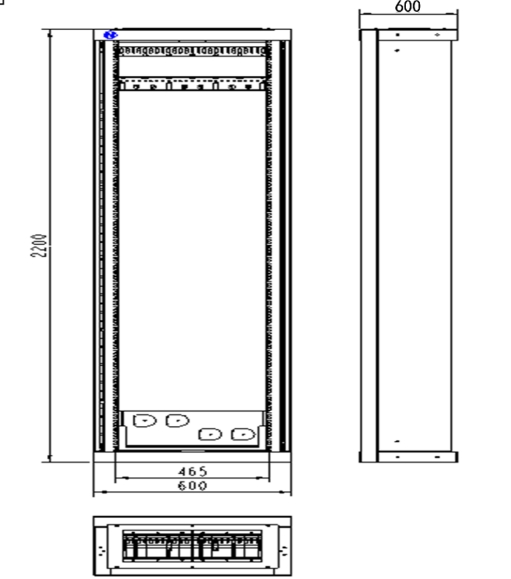

Dimensions

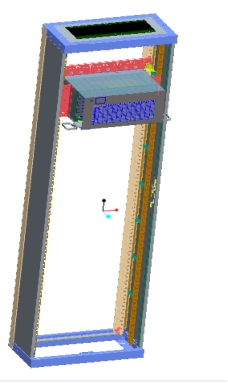

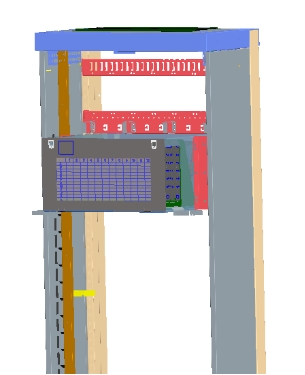

3D Drawing

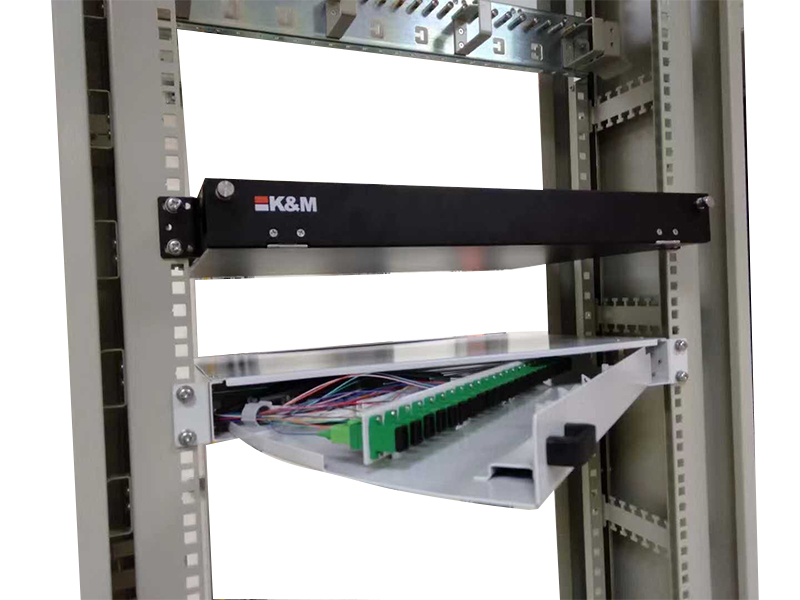

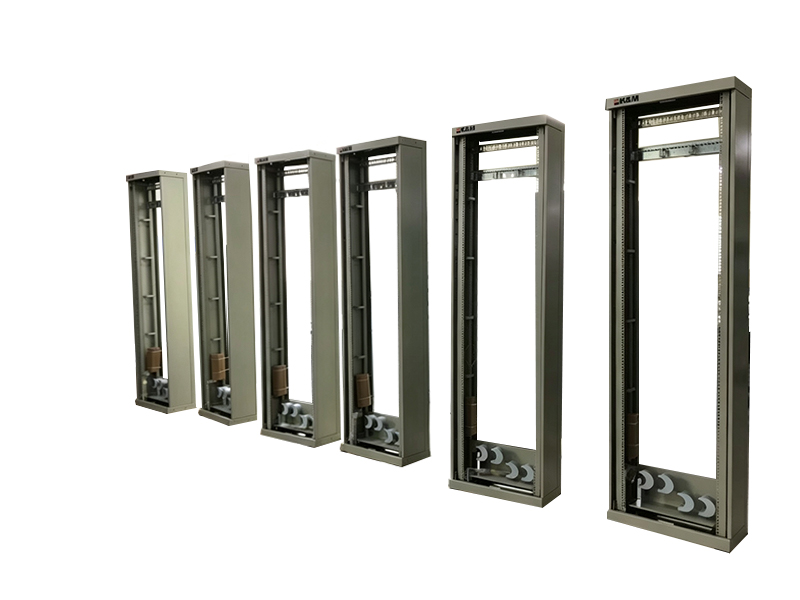

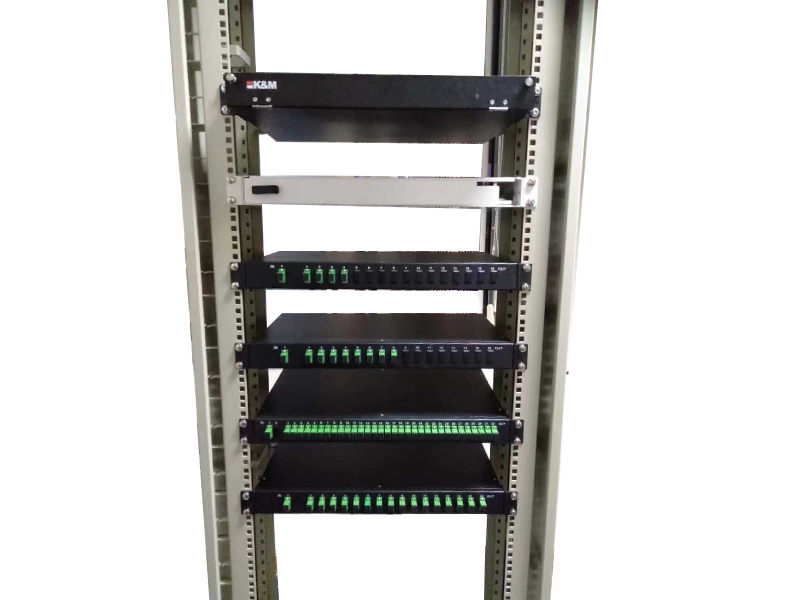

Product Views

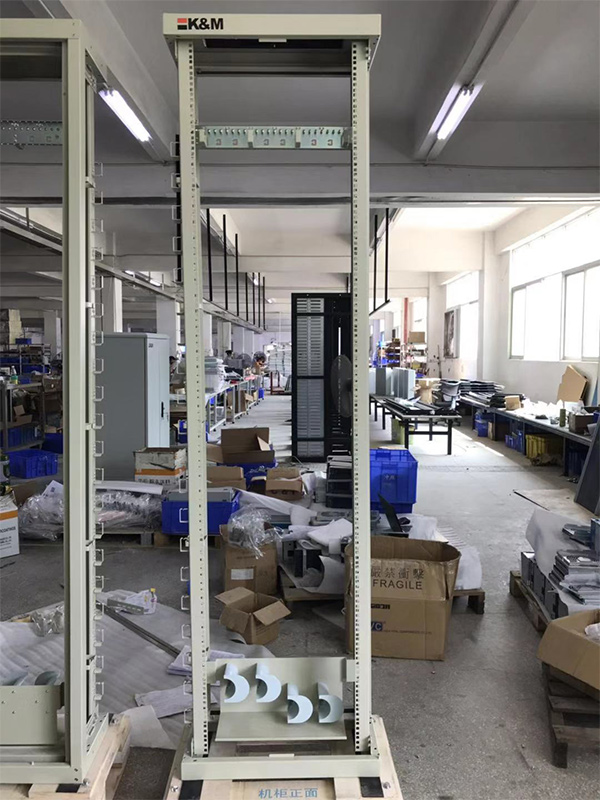

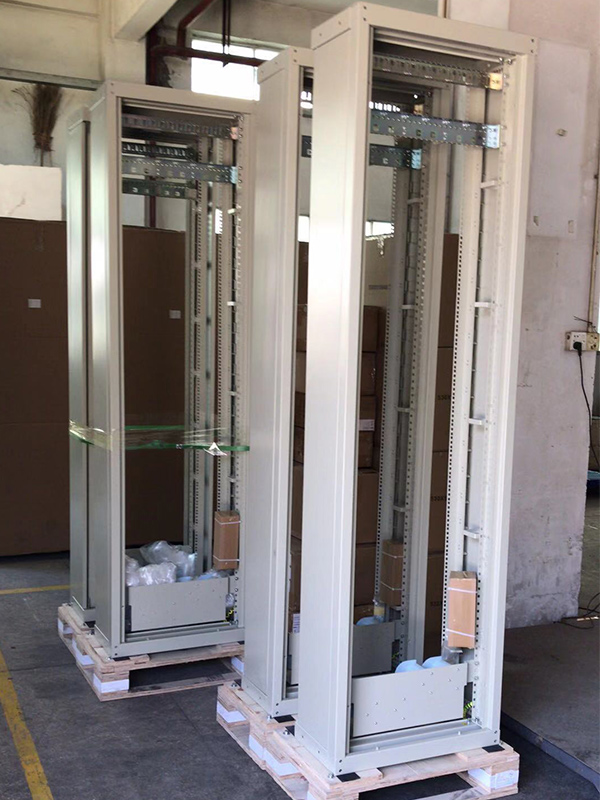

Factory production photos 1

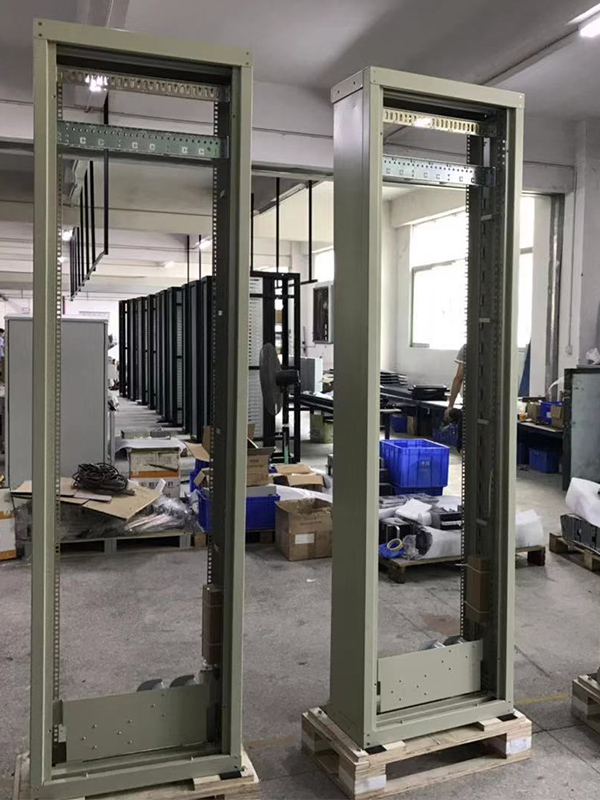

Factory production photos 2

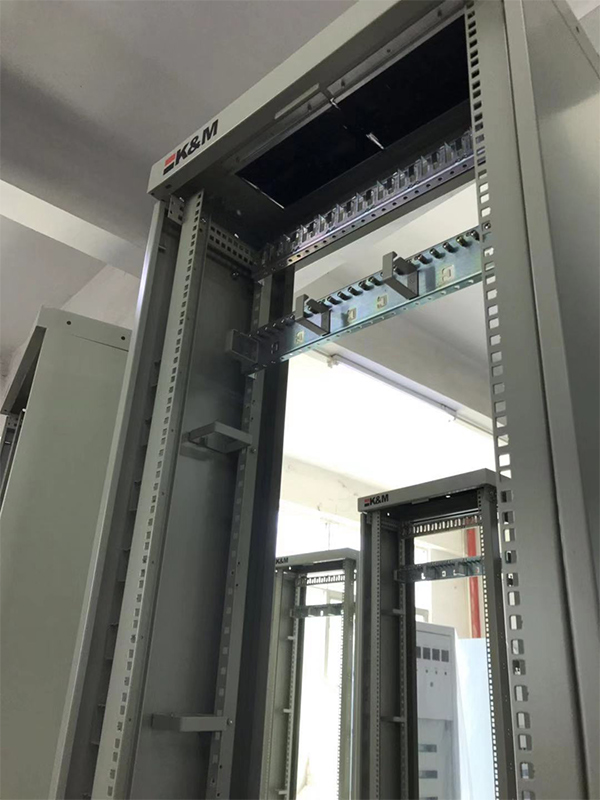

Factory production photos 3

Factory production photos 4

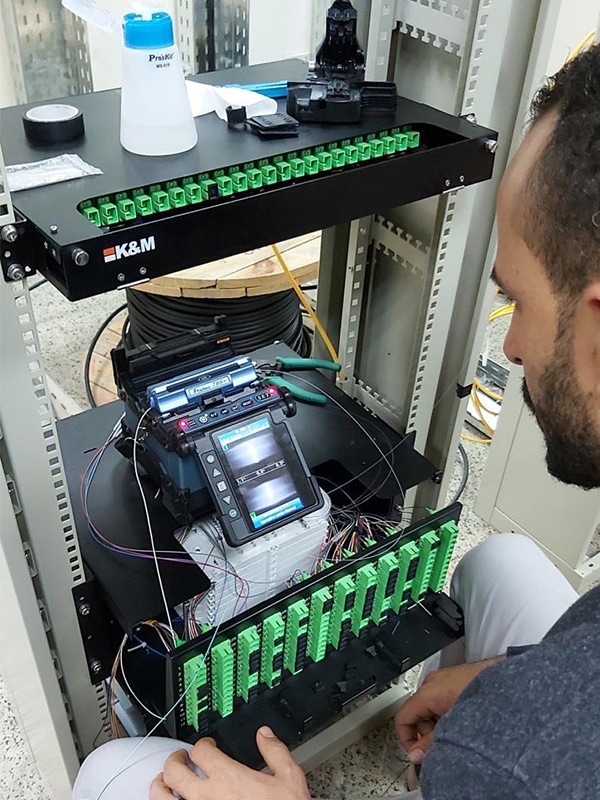

Customer real-shot photos 1

Customer real-shot photos 2

Ambient Conditions

Operation temperature	-5°C ~ +40°C
Storage temperature	-25°C ~ +55°C
Relative humidity	≤ 85% (+30°C)
Atmospheric pressure	70 kPa ~ 106 kPa

Electronic Parameters

Connector attenuation (insertion, interchange, repeat)	≤0.3 dB
Return loss	APC ≥ 60 dB, UPC ≥ 50 dB, PC ≥ 40 dB
High-voltage protective grounding
Insulation resistance	1000MΩ/500V (DC)
Dielectric strength	3,000 V (DC)/1min, no breakdown and no flying arc.

Physical Performance

Clear identification to avoid possible disorder arising from removal during maintenance.
Number of reterminations: > 1,000 times.
Perfect optical route design to ensure bend radius of fibers greater than 30 mm.
Inflammability: Compliance with GB5169.7 Experiment A.

Product information

Name	Ordering Code	Model	Dimension *(H W * D) mm**	Weight (kg)	Remarks
Optical distribution frame	FOA862001		2200600300		1
Optical distribution frame	FOA862002		2200600600		2
Main Rack right side panel	FOA862022		48252130		Option
Front glass door	FOA862025		2000 20 5		Option
Main Rack left side door	FOA862038		1825402		Option
Storage frame	220310760		2200300300		Option
Ground bus bar	FOA86202		208759820		Option
Back panel	221025790		208752720		Option
Side plate	221025810		208722525		Option
Dustproof components of frame	221025880		5202257		Option
Back panel of storage frame	221025830		208722720		Option
Left door	220703670		208731020		Option
Dust cover components of storage frame	221025860		2252707		Option
Fiber routing accessories	FOA862052		43722815		Option
