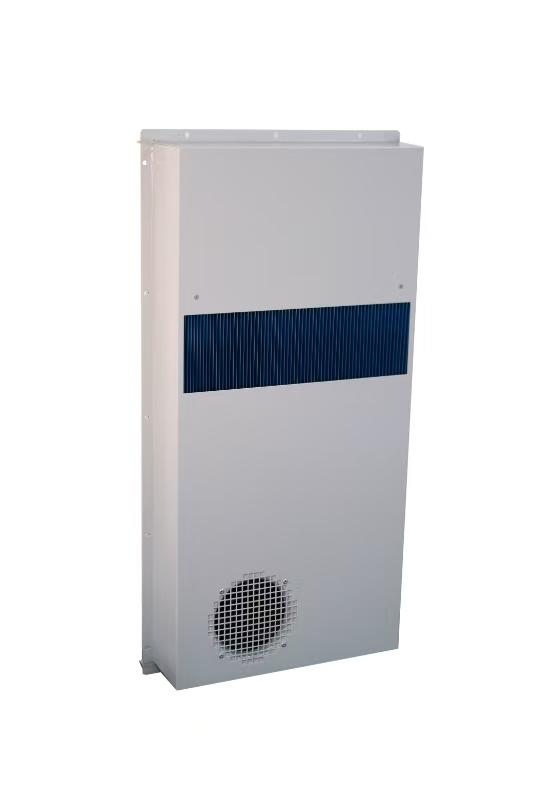

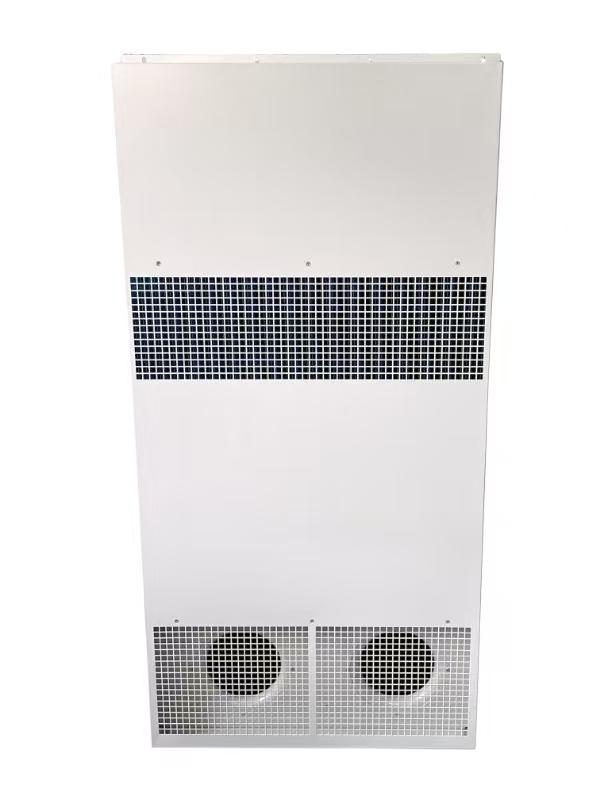

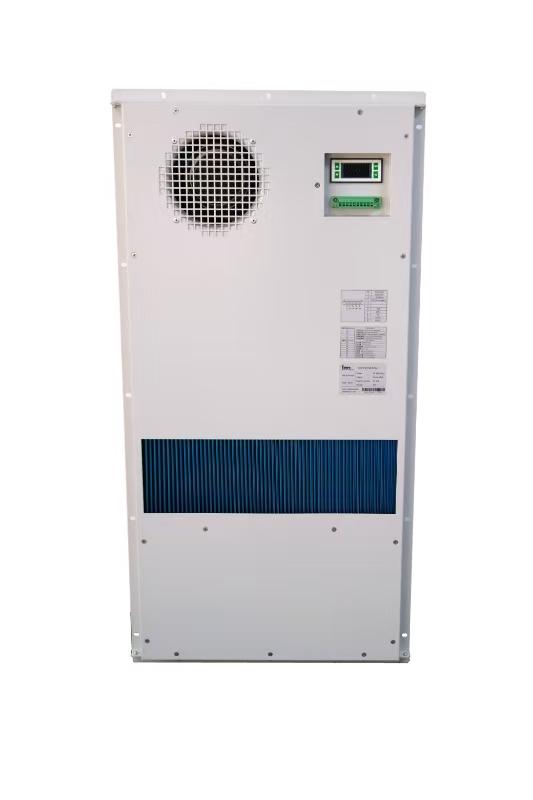

This cabinet heat exchanger is especially designed for telecom cabinet, battery cabinet, industrial control cabinet, with functions of auto heat transfer system for electronic equipments in reliable operation, which can make a good environment to reduce equipments failure rate.

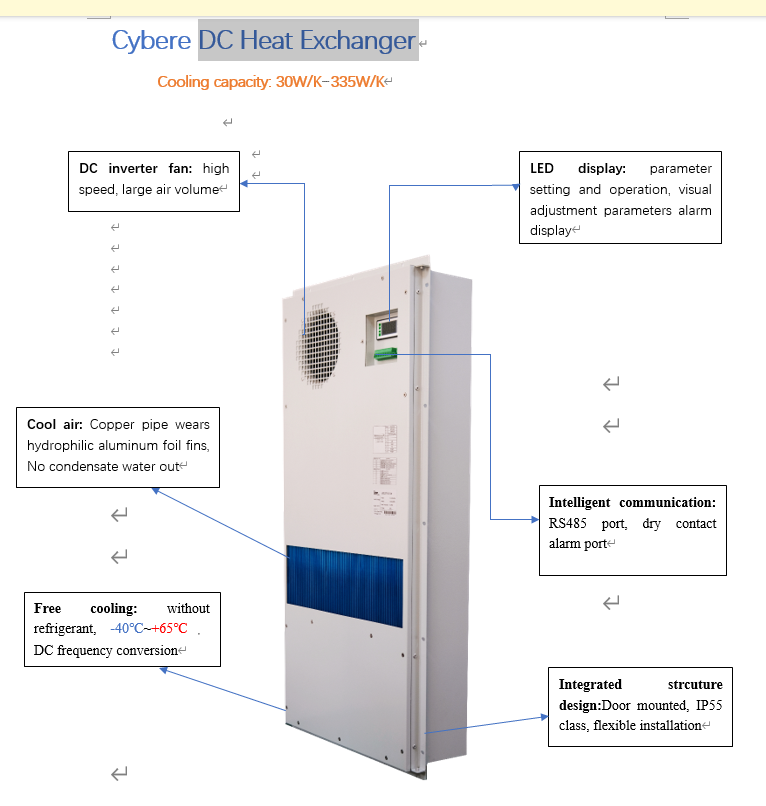

² Natural cold source：The larger temperature difference, the more energy saved
² Intelligent communication：RS485 port and dry contact alarm port for remote monitoring
² LED display：parameters can be set on site and inter temperature operation status can be shown
²
High protection level：Application in outdoors perfectly
² Easy maintainability design：For convenient maintenance
² Wide operating temperature range：Fittable to all conditions
² Aluminum foil heat exchange core, high reliability
² Design standards: EN55022,EN60335,EN60068,EN60529
Model H12NA0E
n Thermal Cycle and Airflow

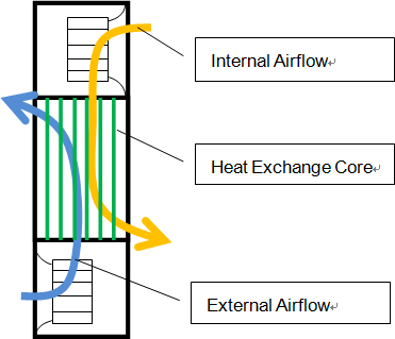

The internal and external air flow circulation is shown as the figure. Through separated mechanism design, internal and external air flow will not be mixed since the waste heat can be dissipated from the cabinet to the ambient. Internal temperature sensor is placed at return air stream to provide reliable temperature measurement and safety of operation.
n Installation and wiring

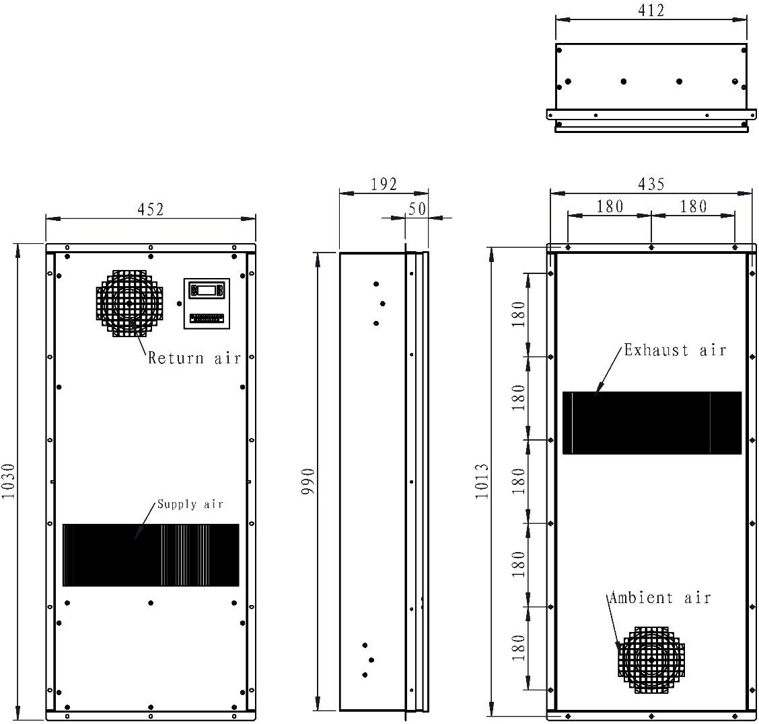

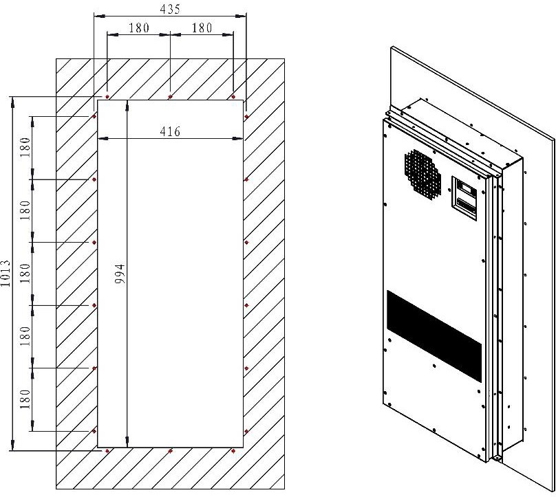

Please design and install the product according to the installation holes drawings below.
|
No. |
Symbol |
Definition |
No. |
Symbol |
Definition |
|
1 |
0V |
Positive of DC power |
6 |
ALR-NO |
Alarm output-NO |
|
2 |
-48V |
Negative of DC power |
7 |
ALR-COM |
Alarm output-COM |
|
3 |
PE |
Grounding line |
8 |
ALR-NC |
Alarm output-NC |
|
4 |
NA |
NA |
9 |
RS485+ |
Communication port-A |
|
5 |
NA |
NA |
10 |
RS485- |
Communication port-B |
Attention：
² Ensure vertical installation
² Avoid internal and external inlet and outlet with object shielding and blocking the air circulation.
² Make sure the wiring is correct and firm.
² It will be better if add a protective cover for avoid destruction
Parameters Table: 30W/K~335W/K
|
PRODUCT |
40W/K |
60W/K |
80W/K |
100W/K |
130W/K |
UNIT |
||
|
Model. |
H04NA0E |
H06NA0E |
H08NA0E |
H10NA0E |
H13NA0E |
|
||
|
No. |
82011 |
82012 |
82010 |
82021 |
82020 |
|
||
|
Power supply |
-48±20% |
V |
||||||
|
Cooling capacity |
40W/K |
60W/K |
80W/K |
100W/K |
130W/K |
W |
||
|
Power consumption |
45 |
65 |
70 |
120 |
190 |
W |
||
|
Internal airflow |
200 |
450 |
470 |
580 |
850 |
m³/h |
||
|
Operational temperature range |
-40～65 |
℃ |
||||||
|
Operating humidity range |
5～95 |
RH |
||||||
|
IP Class |
55 |
|
||||||
|
Noise level |
65 |
dB（A） |
||||||
|
Service life |
10 |
Year |
||||||
|
Net weight |
12 |
15 |
17 |
32 |
36 |
Kg |
||
|
Outer dimensions |
270*420*165 |
400*900*145 |
400*900*145 |
412*990*192 |
412*990*192 |
mm |
||
|
Mounting method |
Semi-embedded Mounting |
|
||||||
|
Certification |
CE, RoHS |
|
||||||
|
Surface Treatment |
Standard Color: RAL7035 |
|
||||||
|
PRODUCT |
150W/K |
180W/K |
200W/K |
260W/K |
335W/K |
UNIT |
||
|
Model. |
H15NAE |
H18NA0E |
H20NA0E |
H26NA0E |
H30NA0E |
|
||
|
No. |
82021 |
82030 |
82060 |
82040 |
82050 |
|
||
|
Power supply |
-48±20% |
V |
||||||
|
Cooling capacity |
150W/K |
180W/K |
200W/K |
260W/K |
335W/K |
W |
||
|
Power consumption |
220 |
250 |
385 |
400 |
420 |
W |
||
|
Internal airflow |
700 |
950 |
1200 |
1650 |
1800 |
m³/h |
||
|
Operational temperature range |
-40～65 |
℃ |
||||||
|
Operating humidity range |
5～95 |
RH |
||||||
|
IP Class |
55 |
|
||||||
|
Noise level |
65 |
65 |
||||||
|
Service life |
10 |
Year |
||||||
|
Net weight |
37 |
45 |
52 |
65 |
70 |
Kg |
||
|
Outer dimensions |
450*1040*192 |
518*1246*240 |
558*1200*241 |
620*1246*240 |
620*1300*280 |
mm |
||
|
Mounting method |
Semi-embedded Mounting |
|
||||||
|
Certification |
CE, RoHS |
|
||||||
|
Surface Treatment |
Standard Color: RAL7035 |
|
||||||
All heat exchanger models follow the order code format:
DHE‑XXXX‑V
| Field | Description | Example |
|---|---|---|
| DHE | Product family (DC Heat Exchanger) | DHE |
| XXXX | Nominal heat dissipation capacity in watts (4 digits, e.g., 0500 = 500 W, 1000 = 1000 W) | 1500 |
| V | Input voltage option: 48 = 48 V DC (standard), 72 = 72 V DC, 110 = 110 V DC (available on request) | 48 |
Example order code: DHE‑1500‑48 – a 1500 W DC heat exchanger with 48 V DC input.
Other capacities (e.g., 300 W, 800 W, 2500 W) and non‑standard voltages (e.g., 24 V, 36 V) are available on request – please consult our sales team.
| Order Code | Cooling Capacity | Input Voltage | Recommended Cabinet Volume (approx.) | Typical Application |
|---|---|---|---|---|
| DHE‑0500‑48 | 500 W | 48 V DC | ≤ 0.3 m³ | Small RRU cabinets, roadside equipment boxes |
| DHE‑1000‑48 | 1000 W | 48 V DC | 0.3 – 0.8 m³ | Medium outdoor cabinets, battery enclosures |
| DHE‑2000‑48 | 2000 W | 48 V DC | 0.8 – 2.0 m³ | Aggregation rooms, edge computing nodes |
| DHE‑3000‑48 | 3000 W | 48 V DC | 2.0 – 4.0 m³ | Large shelters, energy‑storage containers |
For other voltages (72 V, 110 V), replace the last two digits accordingly, e.g., DHE‑2000‑72.
| Order Code | Accessory | Description |
|---|---|---|
| ACC‑HEAT‑DHE | PTC electric heater (300 W / 600 W / 1000 W options) | Maintains internal temperature ≥ 5 °C in cold environments; specify wattage at order |
| ACC‑SNMP‑DHE | SNMP Ethernet adapter | Enables network‑based remote management |
| ACC‑FILTER‑DHE | Spare washable nylon filter (MERV‑8) | Pack of 2 filters |
| ACC‑BRACKET‑W | Wall‑mounting bracket set | Includes expansion bolts and screws |
| ACC‑BRACKET‑D | Door‑mounting ear kit | For cabinet door installation |
| ACC‑CABLE‑DHE | Extended power cable (5 m, with waterproof connector) | For remote power connections |
| Capacity Range | Packing Dimensions (H×W×D, mm) | Gross Weight (approx.) | Units per Pallet |
|---|---|---|---|
| 500 – 1000 W | 500×400×250 | 12 – 18 kg | 20 |
| 1500 – 2000 W | 700×550×300 | 25 – 35 kg | 10 |
| 2500 – 3000 W | 850×650×380 | 40 – 55 kg | 6 |
Packaging contents: Main unit, mounting brackets (wall or door type), user manual (including quick‑start guide), RS‑485 communication cable, and DC power input connector.
Shipping packaging: Individual cartons with foam padding; export cartons reinforced with edge protectors – suitable for sea or air freight.
Standard models (any capacity/voltage): 1 unit (sample orders accepted)
Accessories: 1 set per accessory code
Bulk orders (≥ 20 units): Custom logo printing, box branding, and factory pre‑setting of voltage are available upon request – please contact sales for details.
Complete unit warranty: 5 years (from shipping date)
Key components (fans, controller): 5 years
Extended warranty: Up to 10 years available – contact your sales representative for pricing.
Spare parts: All critical parts (fans, control boards, filters, heaters, etc.) can be ordered separately. A full parts list with order codes is provided in the technical manual.
