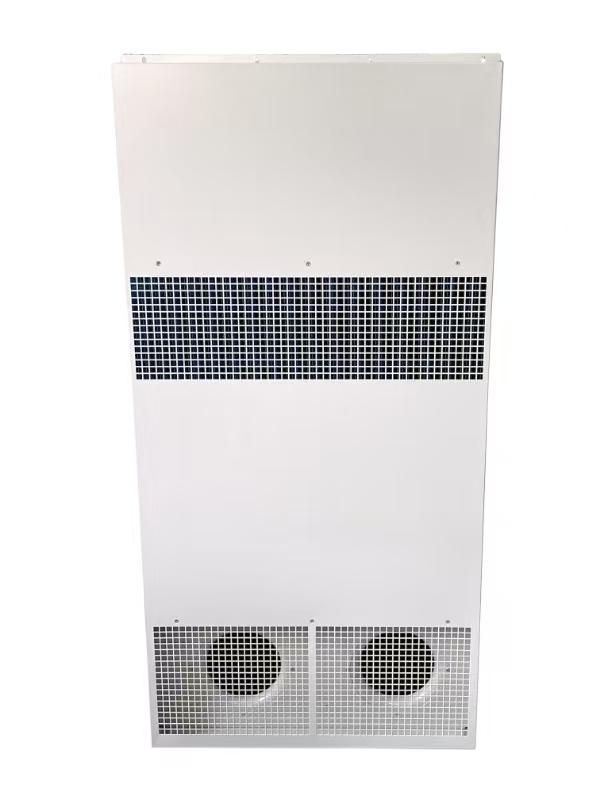

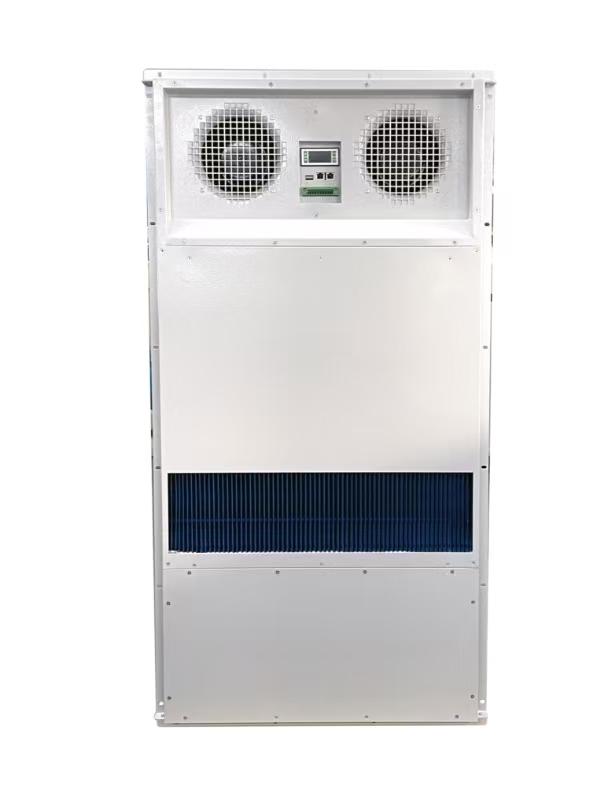

This DC air conditioner series is specifically engineered for telecom base stations, outdoor cabinets, renewable‑energy storage sites, and remote off‑grid locations. It employs a full‑DC inverter compressor and brushless DC fans, supporting a wide DC input voltage range (typically 48 V, 72 V, 110 V, or 310 V DC). The units can be powered directly from telecom rectifiers, solar panels, or battery banks – no external inverter is required, eliminating conversion losses and boosting overall system efficiency by 20%–30% over conventional AC fixed‑speed units. The series offers a cooling capacity range from 500 W to 3000 W (customisable upon request), fitting everything from small RRU cabinets to medium‑sized shelters. The soft‑start feature ensures smooth in‑rush current, minimising stress on limited‑capacity power supplies, making it ideal for solar‑dependent or weak‑grid sites.
Full‑DC variable‑speed control – Both compressor and fans use brushless DC motors. The controller continuously adjusts speed based on real‑time heat load and ambient temperature, achieving “cooling on demand”. Significant energy savings at partial load, with temperature fluctuation controlled within ±1 °C (setpoint adjustable from 20 to 28 °C).
Wide‑voltage adaptability – Built‑in high‑efficiency DC‑DC power management allows input voltage fluctuation within ±20% of nominal value, ensuring stable operation even when solar or battery voltage varies.
Intelligent defrost and low‑temperature start – Automatic frost detection and reverse‑cycle defrost; optional PTC electric heater available to keep batteries and electronics operational in cold climates.
Multiple protections – Over‑voltage, under‑voltage, over‑current, over‑temperature, high/low pressure, and compressor time‑delay protection; built‑in Class II surge arrestor for lightning‑prone areas.
Remote monitoring & management – Standard RS‑485 interface with Modbus RTU protocol; optional SNMP adapter for network management integration. Real‑time data includes operation mode, setpoint, actual temperature, fan speed, and alarm codes.
Corrosion‑resistant construction – Galvanised steel casing with outdoor powder coating; condenser coil epoxy‑coated; overall ingress protection rating IP54 – suitable for coastal, humid, or dusty environments.
Easy maintenance – Front panel removable; washable nylon filter (MERV‑8) can be pulled out from the front; compressor and electrical box are front‑accessible for quick servicing.
| Application Scenario | Recommended Capacity Range |
|---|---|
| Single‑cabinet RRU, small integrated base station, roadside pole‑mounted box | 500 W – 800 W |
| Medium cabinets, aggregation rooms, edge computing nodes | 1000 W – 2000 W |
| Macro‑site shelters, energy‑storage containers, small data centres | 2500 W – 3000 W (higher on request) |
For precise sizing, please consult our technical support with your enclosure volume, heat load, and ambient conditions.
Supports wall mounting (standard brackets), floor standing (optional base), or 19‑inch rack mounting (optional kit).
Factory‑charged with eco‑friendly refrigerant R32 (GWP 675, ODP 0) and sealed – no on‑site charging needed. Simply connect power and communication cables.
Operating ambient temperature range: ‑25 °C to +55 °C (wider ranges available on request).
Warranty: 5 years on the complete unit, 8 years on the compressor; worldwide service network with 48‑hour spare‑part response.
Complies with RoHS, REACH, and EU F‑gas regulations; energy efficiency meets ASHRAE 90.1 and China GB/T 19413‑2010 (Level 2 equivalent).
Parameters Table: 300W~4000W
|
PRODUCT |
300W |
600W |
800W |
1000W |
1500W |
UNIT |
|
Model. |
A03NA0E |
A06NA0E |
A08NA0E |
A10NA0E |
A15NA0E |
|
|
No. |
92011 |
92010 |
92010 |
92020 |
92020 |
|
|
Power supply |
-48±20% |
V |
||||
|
Cooling capacity（L35℃/L35℃） |
300 |
600 |
800 |
1000 |
1500 |
W |
|
Power consumption（L35℃/L35℃） |
130 |
168 |
270 |
285 |
450 |
W |
|
Cooling capacity（L35℃/L55℃） |
180 |
250 |
580 |
595 |
900 |
W |
|
Power consumption（L35℃/L55℃） |
150 |
200 |
385 |
432 |
576 |
W |
|
Internal airflow |
110 |
160 |
185 |
450 |
550 |
m³/h |
|
Operational temperature range |
-40～55 |
℃ |
||||
|
Operating humidity range |
5～95 |
RH |
||||
|
Refrigerant |
R134a |
|
||||
|
IP Class |
55 |
|
||||
|
Noise level |
65 |
dB（A） |
||||
|
Service life |
10 |
Year |
||||
|
Net weight |
8 |
20 |
22 |
28 |
35 |
Kg |
|
Outer dimensions |
315*320*140 |
315*546*175 |
315*546*175 |
446*746*200 |
446*746*200 |
mm |
|
Mounting method |
Semi-embedded Mounting |
|
||||
|
Certification |
CE, RoHS |
|
||||
|
Surface Treatment |
Standard Color: RAL7035 |
|
||||
|
PRODUCT |
2000W |
2500W |
3000W |
3500W |
4000W |
UNIT |
|
Model. |
A20NAE |
A25NA0E |
A30NA0E |
A35NA0E |
A40NA0E |
|
|
No. |
92020 |
92030 |
92030 |
92040 |
92040 |
|
|
Power supply |
-48±20% |
V |
||||
|
Cooling capacity（L35℃/L35℃） |
2000 |
2500 |
3000 |
3500 |
4000 |
W |
|
Power consumption（L35℃/L35℃） |
600 |
750 |
900 |
1030 |
1170 |
W |
|
Cooling capacity（L35℃/L55℃） |
1300 |
1600 |
1750 |
2150 |
2450 |
W |
|
Power consumption（L35℃/L55℃） |
712 |
850 |
985 |
1150 |
1600 |
W |
|
Internal airflow |
700 |
750 |
900 |
985 |
1100 |
m³/h |
|
Operational temperature range |
-40～55 |
℃ |
||||
|
Operating humidity range |
5～95 |
RH |
||||
|
Refrigerant |
R134a |
|
||||
|
IP Class |
55 |
|
||||
|
Noise level |
65 |
dB（A） |
||||
|
Service life |
10 |
Year |
||||
|
Net weight |
37 |
57 |
60 |
67 |
70 |
Kg |
|
Outer dimensions |
446*746*200 |
485*1150*230 |
485*1150*230 |
485*1150*240 |
485*1150*240 |
mm |
|
Mounting method |
Semi-embedded Mounting |
|
||||
|
Certification |
CE, RoHS |
|
||||
|
Surface Treatment |
Standard Color: RAL7035 |
|
||||
All DC units follow the ordering code format:
DC‑XXXX‑V
| Field | Description | Example |
|---|---|---|
| DC | Product family (DC air conditioner) | DC |
| XXXX | Cooling capacity in watts (4 digits, e.g., 0500 = 500 W, 1500 = 1500 W, 3000 = 3000 W) | 1500 |
| V | Input voltage option: 48 (48 V DC), 72 (72 V DC), 110 (110 V DC), or 310 (310 V DC) | 48 |
Example order code: DC‑1500‑48 – a 1500 W DC air conditioner with 48 V DC input.
Other capacities (e.g., 800 W, 2000 W) and custom voltages are available on request – please consult our sales team.
| Order Code | Cooling Capacity | Input Voltage | Typical Application |
|---|---|---|---|
| DC‑0500‑48 | 500 W | 48 V DC | Small RRU cabinets, pole‑mounted boxes |
| DC‑0800‑48 | 800 W | 48 V DC | Medium outdoor cabinets |
| DC‑1500‑48 | 1500 W | 48 V DC | Aggregation rooms, edge nodes |
| DC‑3000‑48 | 3000 W | 48 V DC | Shelters, small data centres, storage containers |
For other voltages (72 V, 110 V, 310 V), replace the last two digits accordingly, e.g., DC‑1500‑110.
| Order Code | Accessory | Description |
|---|---|---|
| ACC‑HEAT‑DC | PTC electric heater kit (500 W / 1000 W) | Maintains internal temperature above 0 °C; select power at order |
| ACC‑SNMP‑DC | SNMP adapter (Ethernet) | Enables network‑based remote management |
| ACC‑FILTER‑DC | Spare washable nylon filter (MERV‑8) | Pack of 2 filters |
| ACC‑BRACKET‑W | Wall‑mounting bracket set | Includes bolts and wall plugs |
| ACC‑BRACKET‑R | 19″ rack‑mounting kit | For standard EIA racks |
| ACC‑BASE‑F | Floor‑standing base (adjustable height) | For ground installation |
| ACC‑CABLE‑DC | Extended power cable (5 m, with connectors) | For longer distance connections |
| Capacity Range | Packing Dimensions (H×W×D) | Gross Weight (approx.) | Units per Pallet |
|---|---|---|---|
| 500‑800 W | 650×420×280 mm | 20‑25 kg | 14 |
| 1000‑2000 W | 800×550×350 mm | 35‑45 kg | 8 |
| 2500‑3000 W | 950×680×420 mm | 50‑60 kg | 5 |
Packaging contents: Main unit, mounting brackets (wall type), user manual, quick‑start guide, communication cable, and DC power input connector.
Shipping: Individually boxed with foam protection; export cartons reinforced with edge protectors.
Standard models (any capacity/voltage): 1 unit (sample orders accepted)
Accessories: 1 set per accessory code
Bulk orders (≥ 20 units): Customised logo, box printing, and voltage pre‑setting available on request.
Standard warranty: 5 years for the complete unit, 8 years for the compressor (from shipping date).
Extended warranty options (up to 10 years) available – contact sales for pricing.
Spare parts (compressors, fans, controllers, filters) can be ordered separately. A full parts list with order codes is provided in the technical manual.
Select the capacity (e.g., 500 W, 1500 W, 3000 W) and input voltage (48/72/110/310 V DC).
Add optional accessories using their order codes.
Specify destination country and preferred shipping terms (EXW, FOB, CIF, etc.).
Send your purchase order to our sales team via email or your local distributor.
Delivery lead time:
Stock models (common capacities/voltages): 2‑3 weeks
Custom capacities/voltages or bulk orders: 4‑6 weeks
