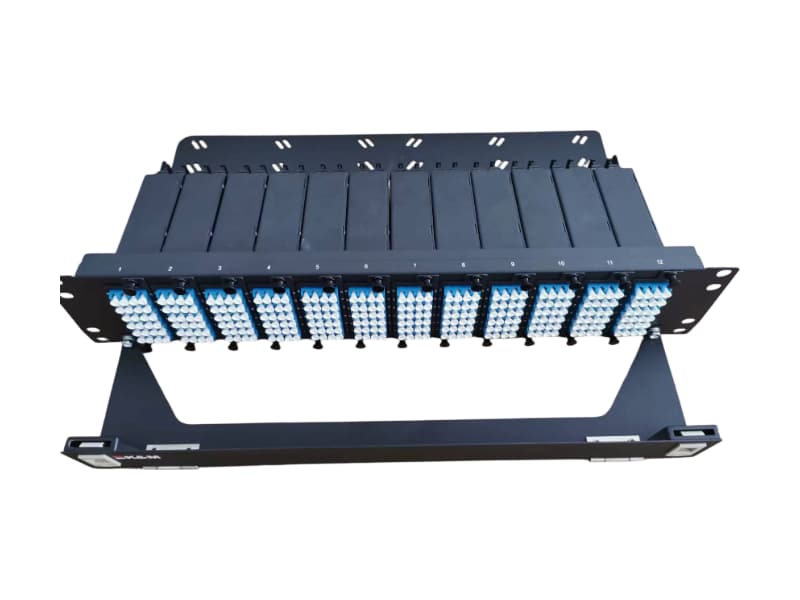

2U 288 ports data center MTP fiber optic patch panel

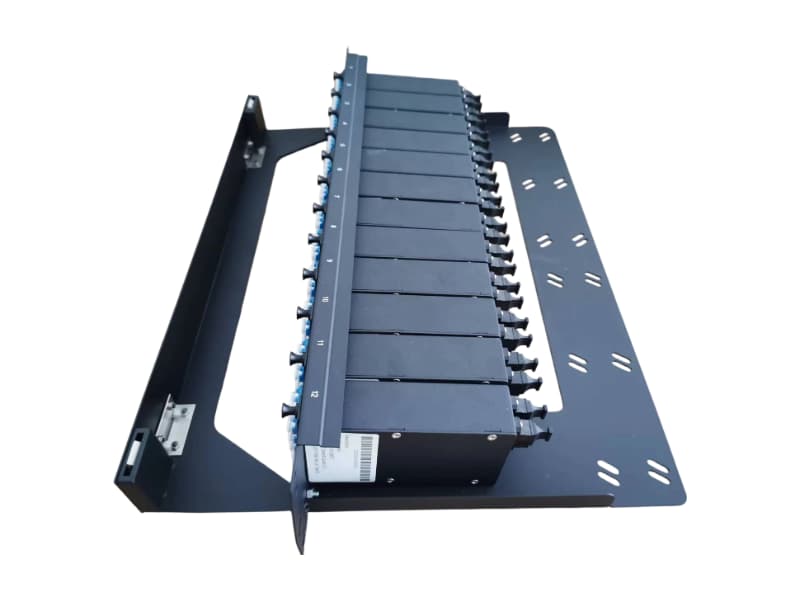

24-fiber MPO to LC modular cassette for telecommunication

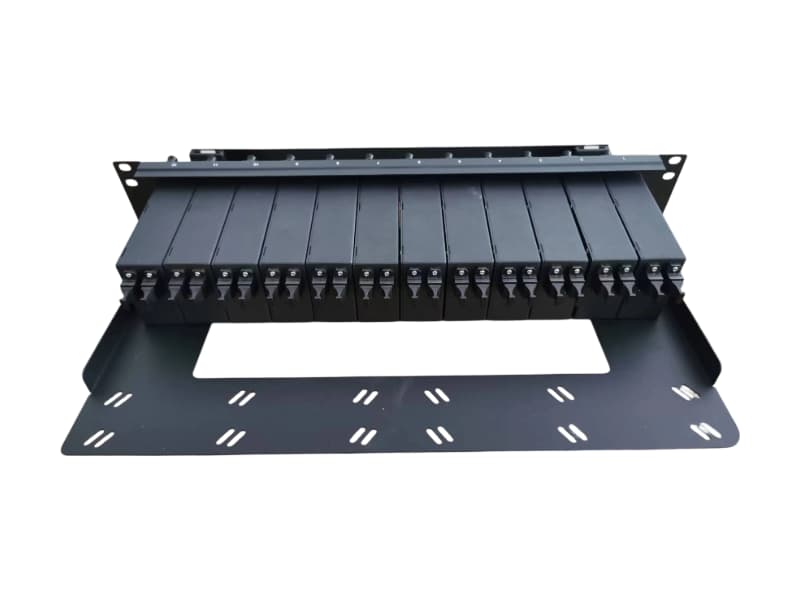

Cold rolled steel 19 inch rack mount ODF panel

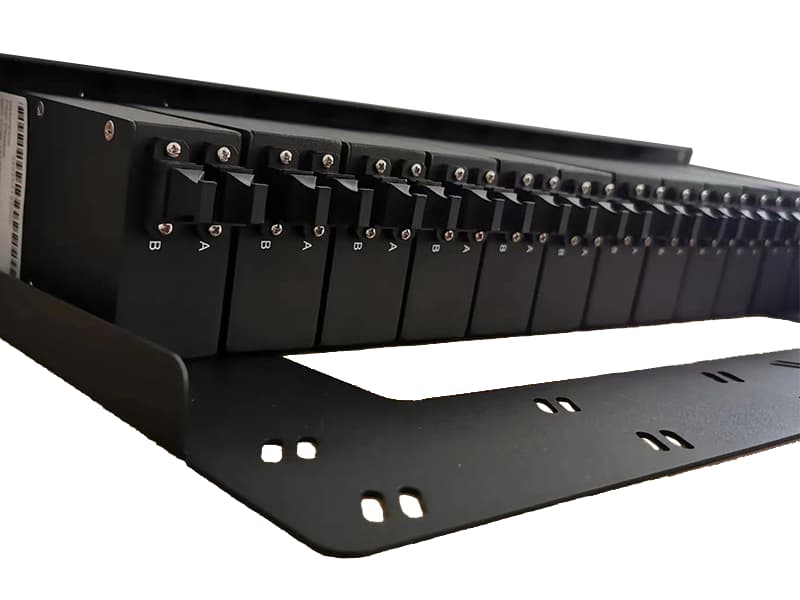

Tool-free installation MTP to LC fiber distribution frame

OM3 OM4 MPO fiber optic modular patch panel

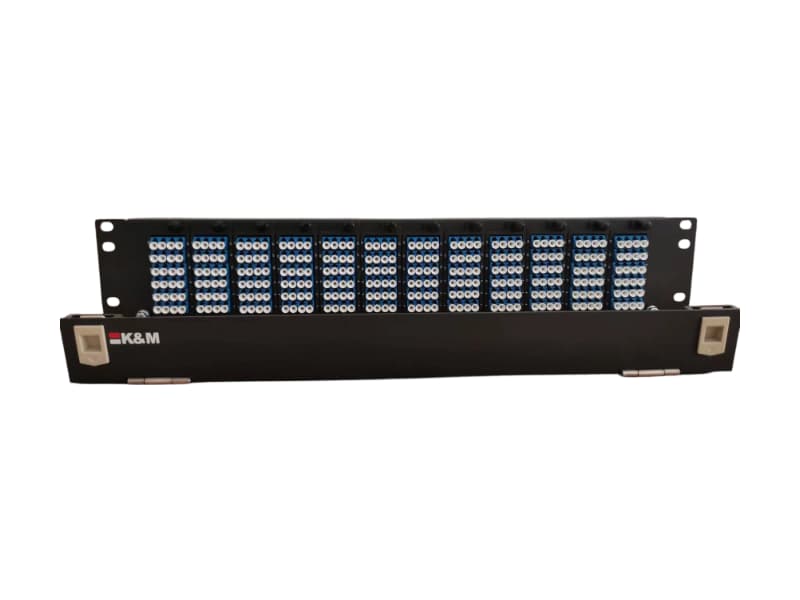

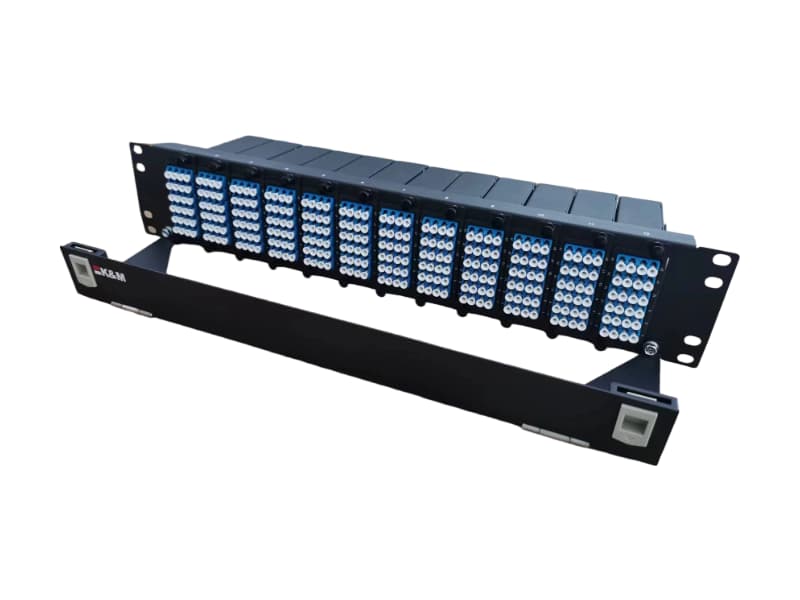

1U/2U Ultra-High Density MPO/MTP to LC Patch Panel

Name: 1U/2U Ultra-High Density MPO/MTP to LC Patch Panel
Availability: InStock

High Density Panel is specially to accommodate high density cabling in high end Data Center and Telecommunication central office environment. The shallow depth of High Density Panel makes it suitable for low depth copper racking systems or Telecommunication ODFs.

The 19’’ 1U 5 modular 120 ports And 2U 12 modular 288 ports MPO Panel contains factory controlled and tested Modules can be installed in it.MTP - LC assembly to deliver optical performance and reliability.

Inquiry now

Ultrahigh Density MPO/MTP Patch Panel Overview

Key Features

■ 19" rack mount, the panel and modules are made of cold rolled steel sheet.

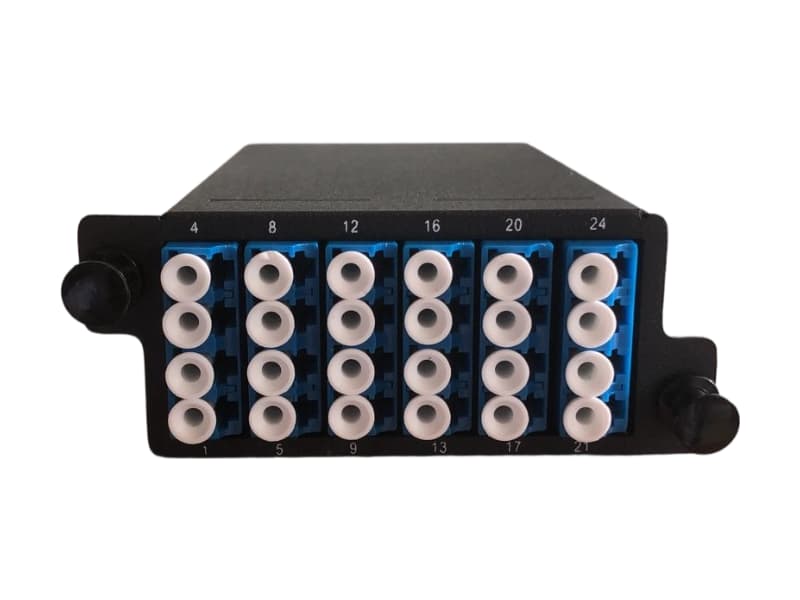

■ Modular in design with higher density, special mini module comes up to 24 LC or 12 SC adapter ports and switch to MTP/MPO connection.
■ 1U patch panel capacity come up to 120F fully loaded with 5 modules. And 2U capacity come up to 288F fully loaded with 12 modules, save more space for large data centers and reduce combined cost.
■ Unique tool-free installation design for easy and fast assembly and installation.
■ Factory pre-terminated module, plug and play on site, no need fiber splicing and cable wiring which saves labor cost.
■ This system can also support application of optoelectronic hybrid to meet requirement of heavy-current and weak-current network distribution.

Applications

■ Data communication applications
■ Data Centre infrastructure
■ Storage Area Network - Fibre Channel
■ Emerging 40 and 100Gbps Protocols compatible

Ultrahigh Density MPO/MTP Patch Panel Overview

Technical Specifications

Item	1U	2U
Dimensions (W x D x H)	483mm×335mm×1U	483mm×335mm×2U
Storage Temperature	-20°C~+60°C
Operating Temperature	-20°C~+55°C
Relative Humidity	≤85%(+30°C)
Air Pressure	70kPa~106kPa

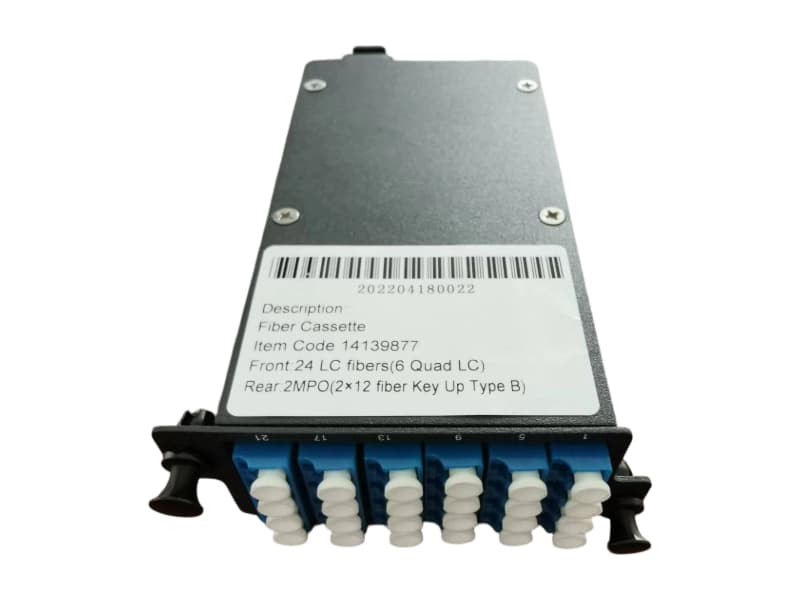

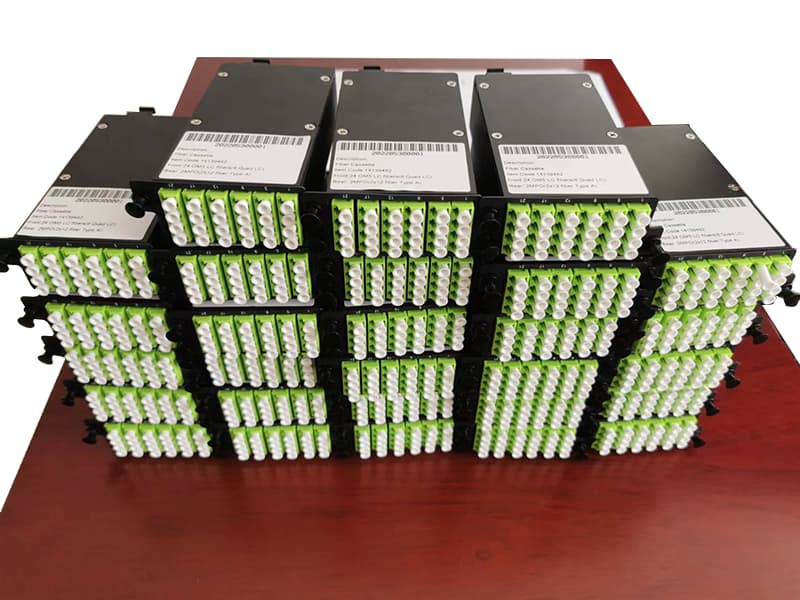

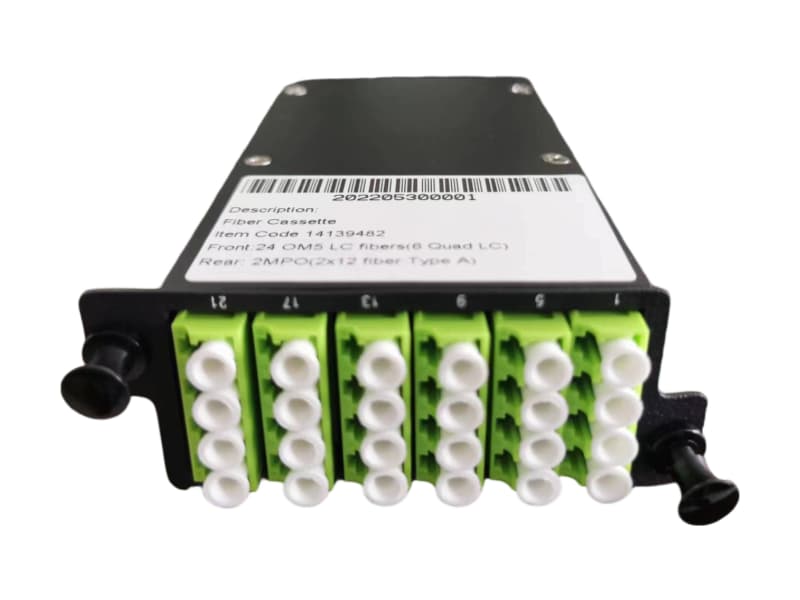

MPO/MTP-LC Module Parameter

Material	SPCC(cold rolled steel sheet)
Color	Black
Size	88W133D34Hmm
(front)Adapter type	LC quad (w/o flange)×6Pcs
(front)Adapter color	Aqua: OM3/OM4 ; Beige: OM1/OM2;Lime Green OM5,Blue: SM-UPC ; Green: SM-APC

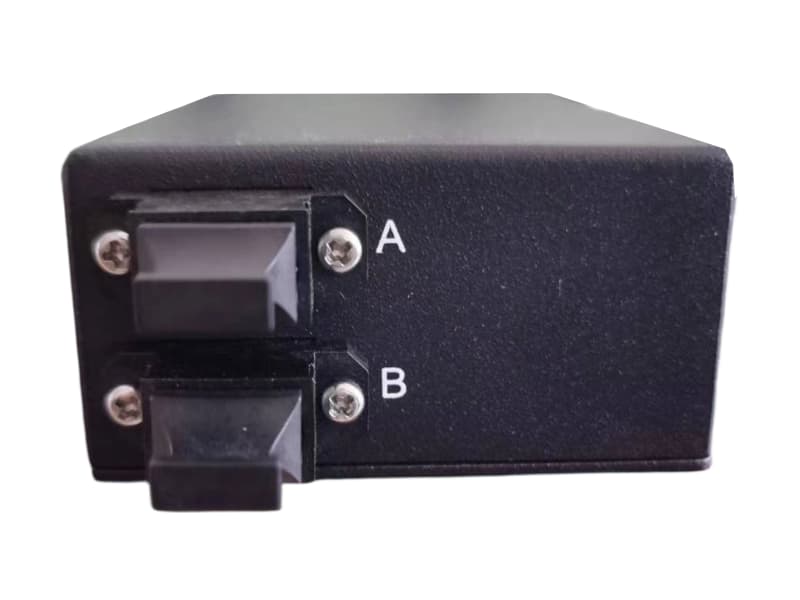

(rear)Adapter type	MPO/MTP(Full flange/Opposed)
(rear)Adapter color	Black
Connector A	SM :LC-UPC,0.9mm or LC-APC,0.9mm , MM:LC-UPC,0.9mm
Connector B	SM : MPO/MTP(male)-APC , MM: MPO/MTP(male)-PC
Patch cord polarity	TypeA
Weight	0.22kg

Optical Performance

Type	Wavelength	Module I.L. Max
MTP-LC(MM)	850nm/1300nm	0.50dB
MTP-LC(SM)	1310nm/1550nm	1.30dB
MPO-LC(MM)	850nm/1300nm	0.75dB
MPO-LC(SM)	1310nm/1550nm	1.50dB

Sequence port1-port1 Chart

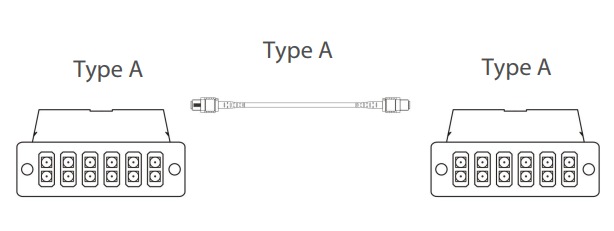

Solution 1

Cassette 1 : Type A

Cassette 2 : Type A

MPO patch cord : Type A

Cassette number	Color	Cassette number	Color
1	Blue	13	Blue
2	Orange	14	Orange
3	Green	15	Green
4	Brown	16	Brown
5	Gray	17	Gray
6	White	18	White
7	Red	19	Red
8	Black	20	Black
9	Yellow	21	Yellow
10	Purple	22	Purple
11	Pink	23	Pink
12	Aqua	24	Aqua

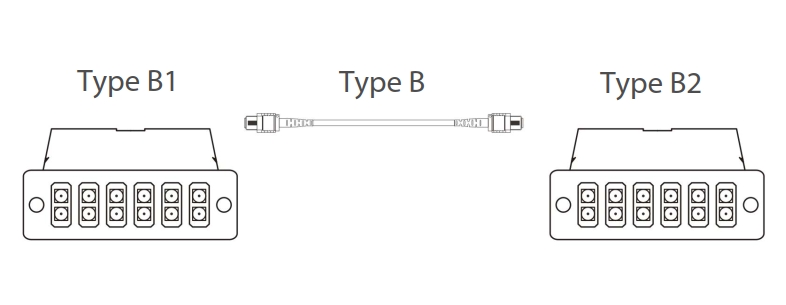

Solution 2

Cassette 1 : Type B

Cassette 2 : Type B

MPO patch cord : Type B

Cassette number	Color	Cassette number	Color
1	Blue	13	Blue
2	Orange	14	Orange
3	Green	15	Green
4	Brown	16	Brown
5	Gray	17	Gray
6	White	18	White
7	Red	19	Red
8	Black	20	Black
9	Yellow	21	Yellow
10	Purple	22	Purple
11	Pink	23	Pink
12	Aqua	24	Aqua

Ordering Information (Panel)

		Product Description：	MPP2 - SP - B - 9005 - 2×12MTP/PC - LC/UPC - OM3 - 3MD - 2BP - 1U
X	1	- Model	MPP2
X	2	- Body Materials	SPCC(cold rolled steel sheet)
X	3	- Painting Finish	B: powder coat matt finish
X	4	- Painting Color	RAL 9005 black
X	5	- Patch cord Quantity	2×12 : 2pcs of 12F ; 1×24 : 1pc of 24F ; 1×12 : 1pc of 12F
X	6	- Connector A	MPO/PC; MPO/APC; MTP/PC; MTP/APC
X	7	- Connector B	LC/UPC; LC/APC; SC/UPC; SC/APC
X	8	- Fiber Mode	G657A1; OM1; OM2; OM3; OM4；OM5
	9	- Module Quantity	1MD; 2MD; 3MD; 4MD; 5MD; 6MD; 7MD; 8MD; 9MD; 10MD; 11MD; 12MD
	10	- Baffle Quantity	0BP: w/o baffle; 1BP: with 1 baffle; 2BP: with 2 baffle; 3BP,4BP,etc
	11	- Panel Height	1U; 2U
	Note：1. MPP2-1U fully loaded with 5 modules, MPP2-2U fully loaded with 12 modules. 2. Baffles are used where modules are not installed. 3. Empty frame w/o Module Description:MPP2-SP-B-9005-EM-1U/2U (1U、2U are optional)

Ordering Information (Module)

	Product Description：	MPM2 - SP - B - 9005 - 1×12MTP/PC - SC/UPC - OM3
1	- Model	MPM2
2	- Body Materials	SPCC(cold rolled steel sheet)
3	- Painting Finish	B: powder coat matt finish
4	- Painting Color	RAL 9005 black
5	- Patch cord Quantity	2×12 : 2pcs of 12F ; 1×24 : 1pc of 24F
6	- Connector A	MPO/PC; MPO/APC; MTP/PC; MTP/APC
7	- Connector B	LC/UPC; LC/APC
8	- Fiber Mode	G657A1; OM1; OM2; OM3; OM4;OM5

Frequently Asked Questions

What is the difference between MPO and MTP? Are they compatible?

A: MPO (Multi-fiber Push-On) is a standardized multi-fiber connector format. MTP® is a branded, enhanced version of the MPO connector developed by US Conec, offering improved optical and mechanical performance. The two are physically compatible and interchangeable — an MTP connector can plug into an MPO adapter and vice versa. The interface is the same, though MTP features an elliptical guide pin design (vs. circular on standard MPO) and typically provides better insertion loss performance. In practice, the terms are often used synonymously in the industry

How many fiber connections can this patch panel support?

A: The 1U version supports up to 144 fibers (or 120 LC ports depending on module configuration), while the 2U version supports up to 288 fibers. This is achieved through modular cassettes — each 1U unit accommodates up to 6 modules, and each 2U unit accommodates up to 12 modules. Compared to a standard 1U LC duplex panel (which holds only 24 duplex ports / 48 fibers), this represents a 3× to 6× density improvement.

What is the modular cassette design? Can I mix different fiber types?

A: Yes, the panel features a fully modular design. Each cassette is a factory pre-terminated, plug-and-play module that breaks out an MPO/MTP trunk connection into individual LC ports. Cassettes are available in multiple fiber types — including OM3, OM4, OM5 multimode, and OS2 single-mode — with various polish options (UPC or APC). You can mix and match different cassette types within the same panel to support diverse network requirements in a single rack unit.
